BEP 716H-140A DVSR , With Triple MASTER SWITCH
#0026511
Only $347.90
ADD TO CART
This product is in stock and ready for order
Details

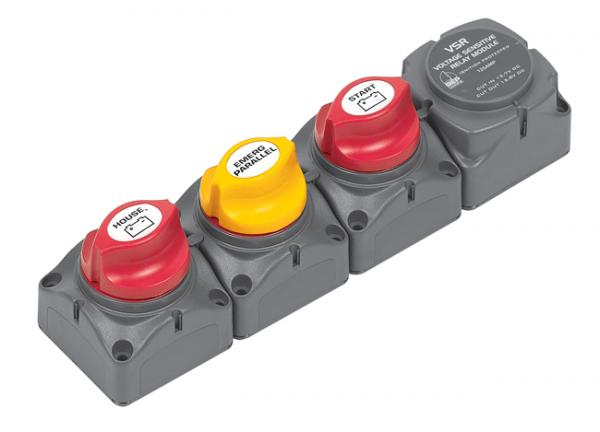

BEP Quality ,Quad , Cluster Battery Master Switch , With DVSR. HORIZONTAL MOUNT
Dual Battery charging clusters
For use on charging systems under 140Amps
Dimensions:
276L X 69W x 75H mm
10.9L X 2.7W x 3H inches
To be used in the following systems:
1. Single outboard dual battery bank.
2. Single alternator inboard engine dual battery bank.
The Voltage Sensitive Relay (VSR) allows two batteries to be charged at the same time. When the engine is started and the start battery reaches 13.7 volts, the VSR engages, allowing two battery banks (start and house) to be charged simultaneously. When the voltage drops below 12.8 volts (eg the engine is stopped), the VSR disengages, separating the batteries. This system eliminates the possibility of draining the start battery and protects sensitive electronic equipment powered from the house battery from harmful engine start up spikes.
Advantages of fitting a VSR over conventional charge (diode isolators).
•Easy 3 wire connection at the battery. No need to bypass existing alternator wiring.
•VSRs have no volt drop. Conventional diode isolators incur a minimum of 0.6 volt drop.
•Compact size - No large heat sink
•Cost effective solution
